| Wingspan | 140 cm / 1.4 m |
| Length | 124 cm / 1.24 m |
| Height | 25 cm / 0.25 m |
| Aircraft Weight | 3.8 kg |
| Payload | Static Camera |
| Warhead | 500 gms |

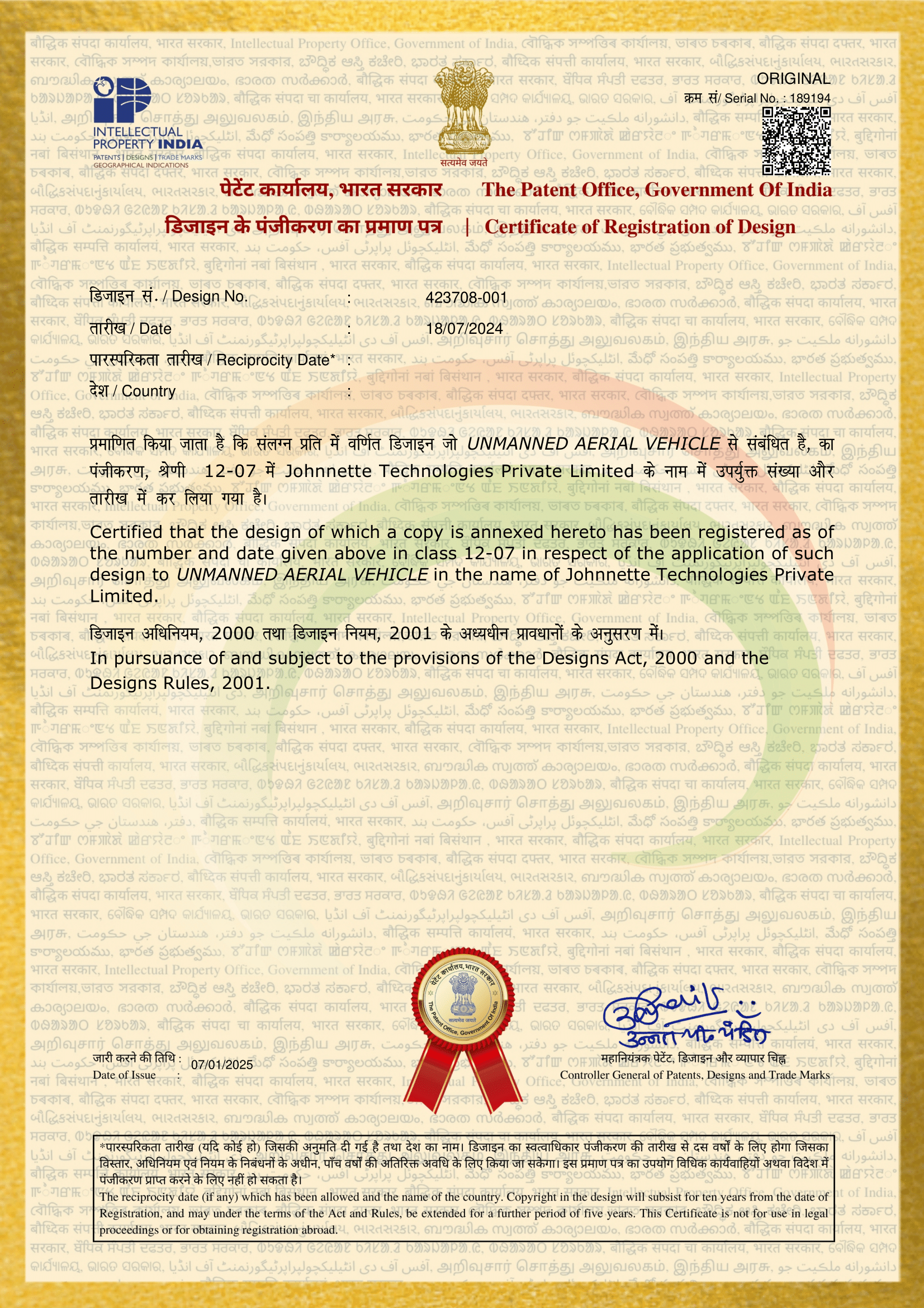

| Design Patented | Serial No 423708 - 001 |
| Propulsion | Electric |
| Material | EPP & Composite |
| Cruise Speed | 80 km/hr |
| Operational Altitude (AGL) | 500m AGL |

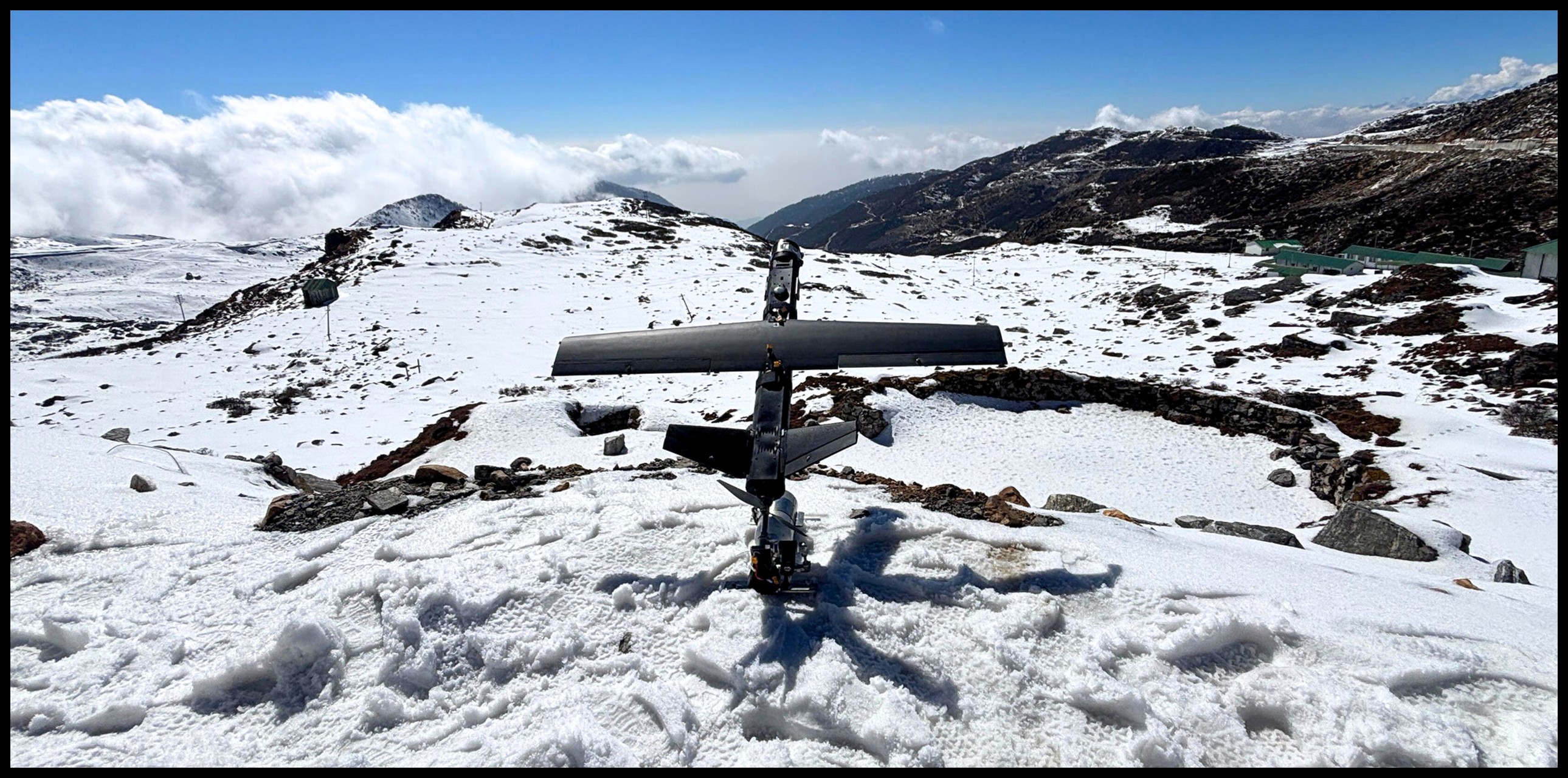

| Max Launch Altitude (AGL) | 17000 ft |
| Endurance | 20 min |
| Maximum Speed | 120 km/hr |
| Range | 05 km |
| Operating Temperature | -20° C to 50° C (Field Tested) |
| Launch/Recovery | Cannister Launch, Hand Launch/ Net Recovery |
FEATURES
- NAVIGATION: GPS and On Board Computer
- Operational Altitude Upto 500m
- Software Johnnette GCS Closed Source Encrypted
- WIND RESISTANCE 40kmph
- GCS MIL STD All weather laptop integrated with our software

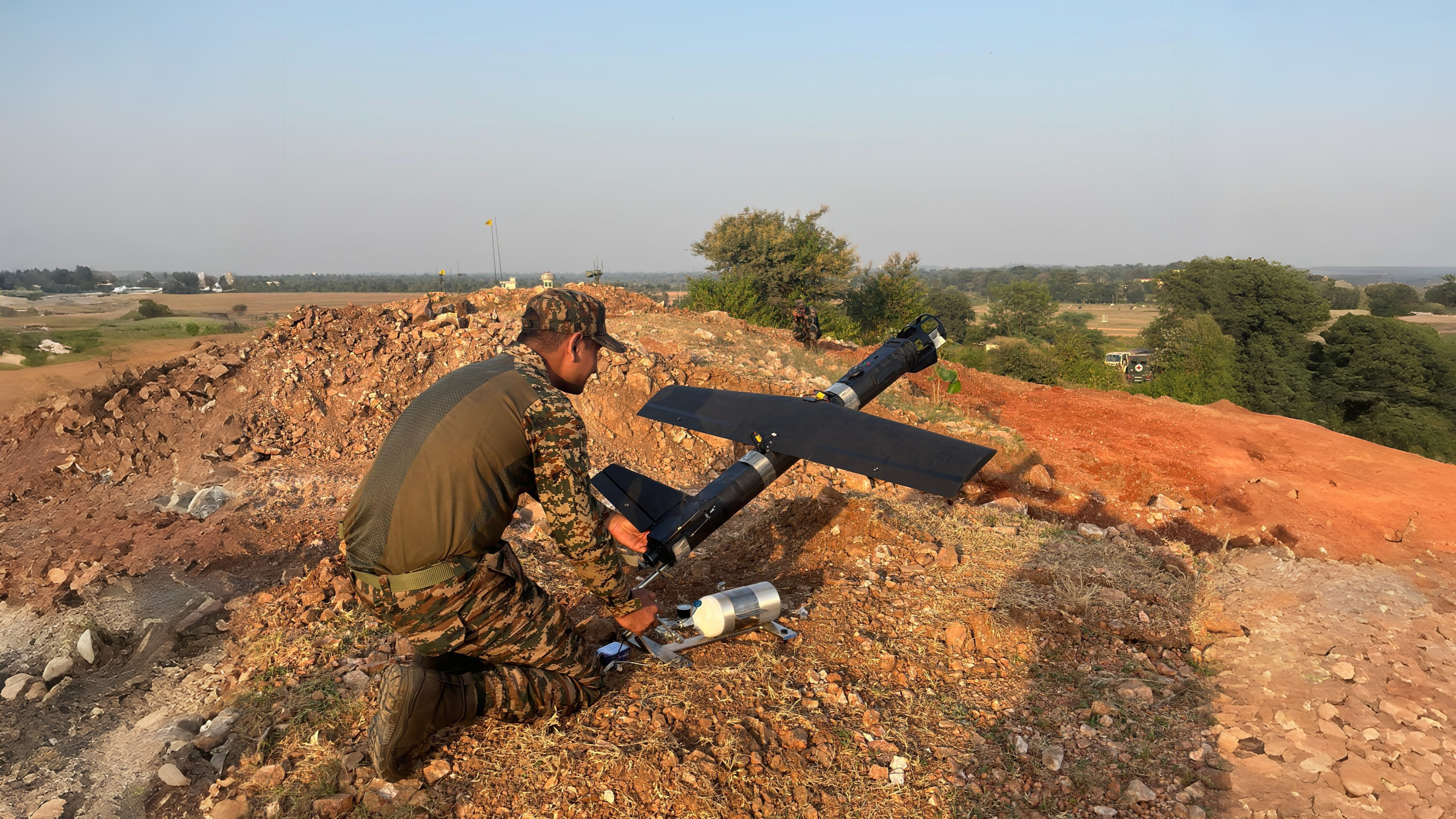

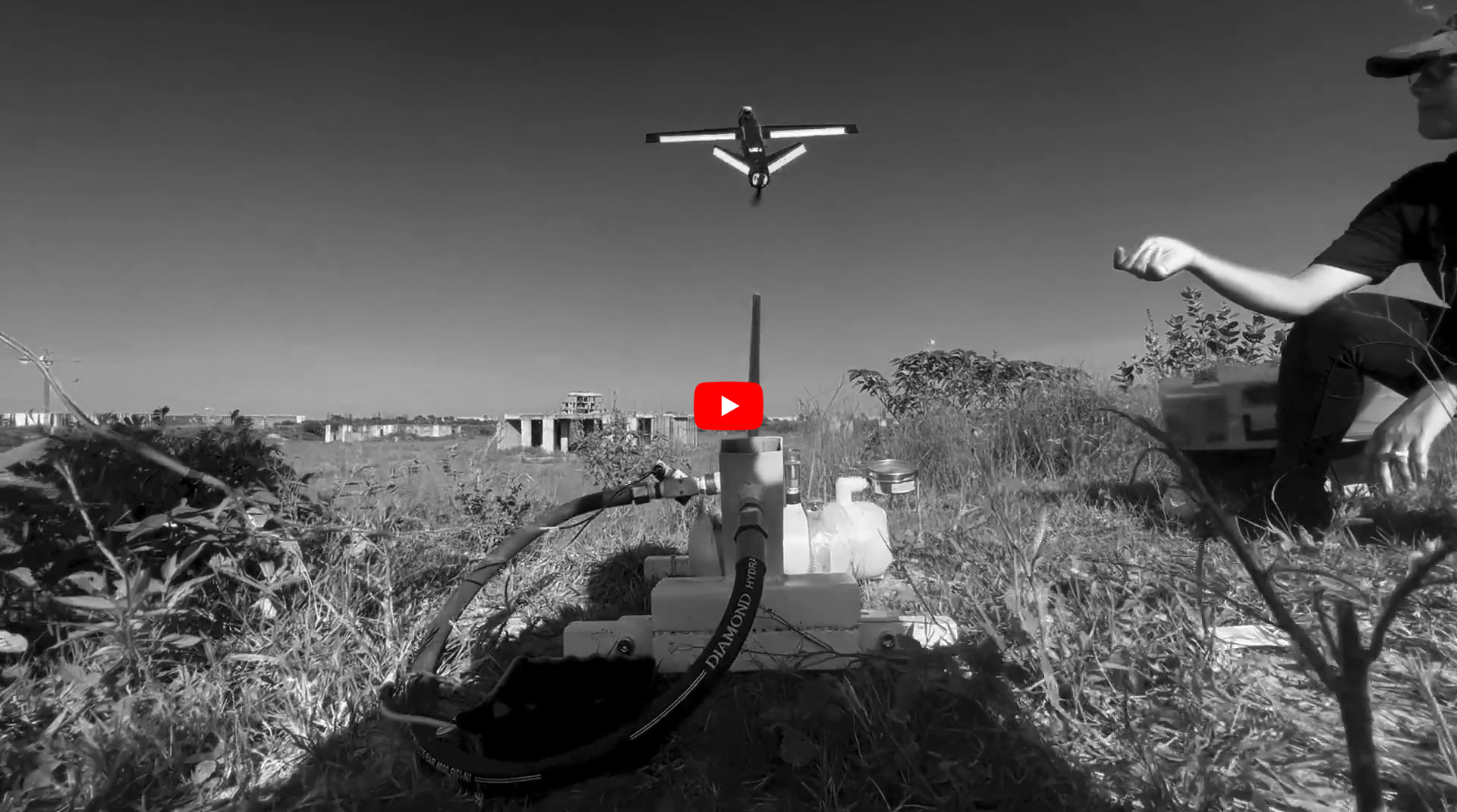

- Pneumatic Canister Launch makes it easy to deploy
- Highly affordable alternative to neutralize lightly armoured vehicles and enemy bunkers

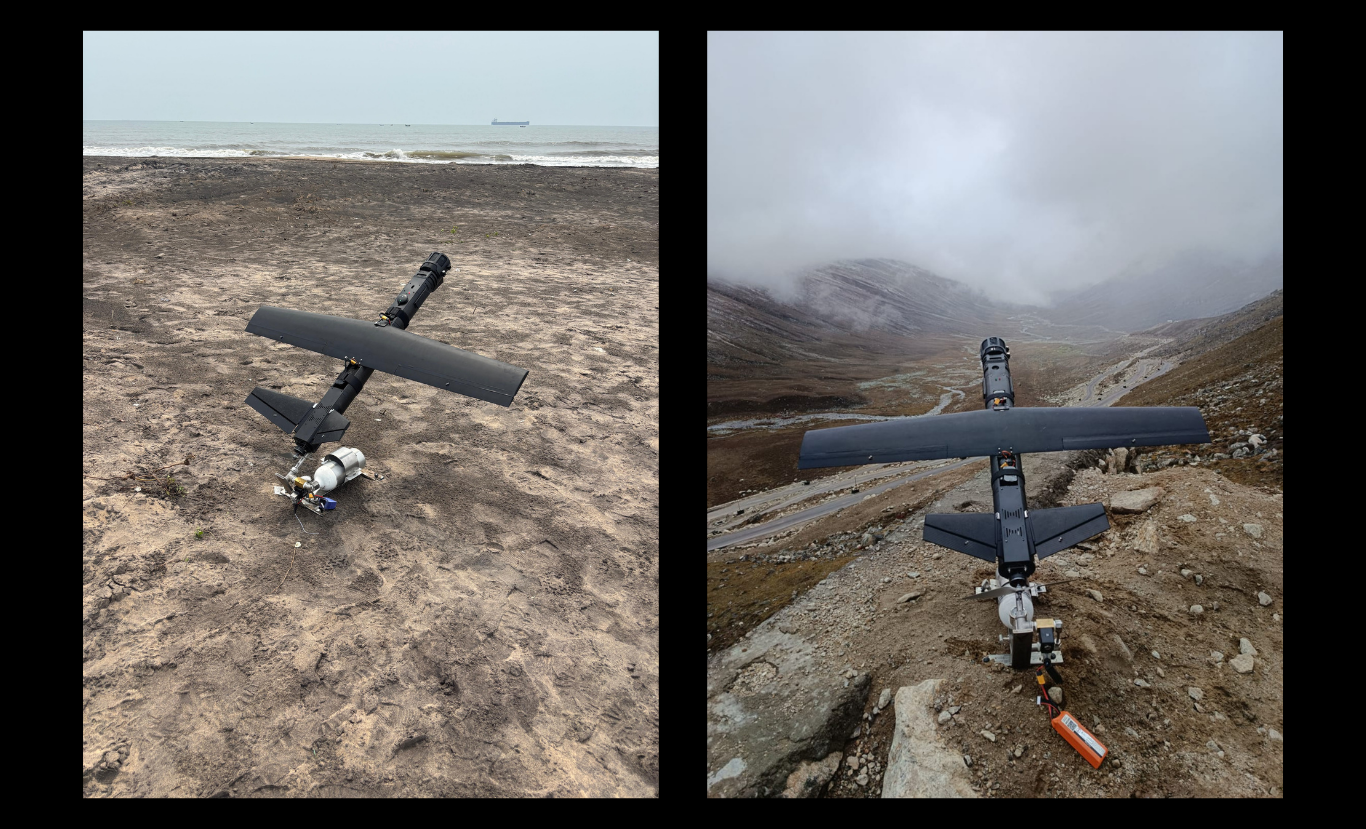

The JM-1 loitering munition is a fire and forget system designed for autonomous missions, enabling forces to deploy it by inputting specific latitude and longitude coordinates. It is equipped with a 500- gram warhead and can be directed by the operator to strike the designated target as programmed into the mission planning software, thereby enhancing the operational effectiveness of the Armed Forces. The JM-1 is configured for autonomous missions and is employed in both anti-personnel and anti-material operations. This system can be launched using a pneumatic cannister or by hand as required.
